Railways Meteo Security System (RAMSES)

Background

In recent years, following short and intense meteoric events, along the railway line of the Department of Reggio Calabria, there have been a series of interruptions in correspondence of basins below 3-4 km². Based on the current procedures for risk mitigation in RFI, in the event of a “red alert” issued by the Civil Protection, RFI management locate along the railway line personal in correspondence of the area in question. This procedure is particularly expansive, as the warnings can affect sections of track extended even hundreds of kilometers. An accurate and timely localization of the major problems that may occur along the railway line due to heavy rainfall would allow the optimization of the management of the resources to be used in the inspection activities, reducing the extension of the sections to be checked and the time needed for the inspections.

Purpose

The experimental research project, had as its main objectives the development of geo-hydrological risk mitigation tools along the railway network of the   Reggio C. RFI Department, with particular attention to small and very small basins ( > 0.75 sq. Km). The main activities were aimed at:

• identify the precipitation field at time t = 0 to calculate the inflows on the basins using radar data, and therefore the flow rates at the rail crossings section;
• create a nowcasting at t = 30-60 minutes, to anticipate probable critical conditions;
• for some pre-set hydrological scenarios, estimate the probable effects of events on the ground.

Methods

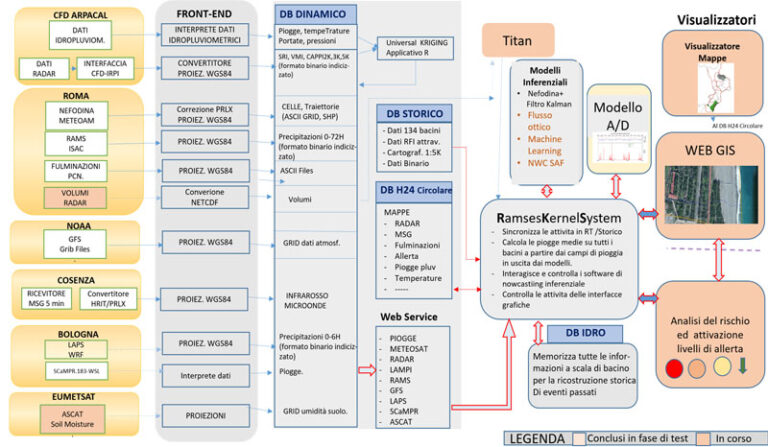

To achieve the objectives, a series of applications have been realized aimed at:

• Construction of the rainfall field by radar or in its absence by rain gauges, NCW-SAF tools based on Meteosat and atmospheric parameters taken from ECMWF forecast models, microwave satellites.
• 30/60 minute Nowcasting based on radar volumes processed using TITAN software.
• 3-hour forecast model using LapsWRF model
• 24 hour LAM forecasting model based on RAMS forecaster.

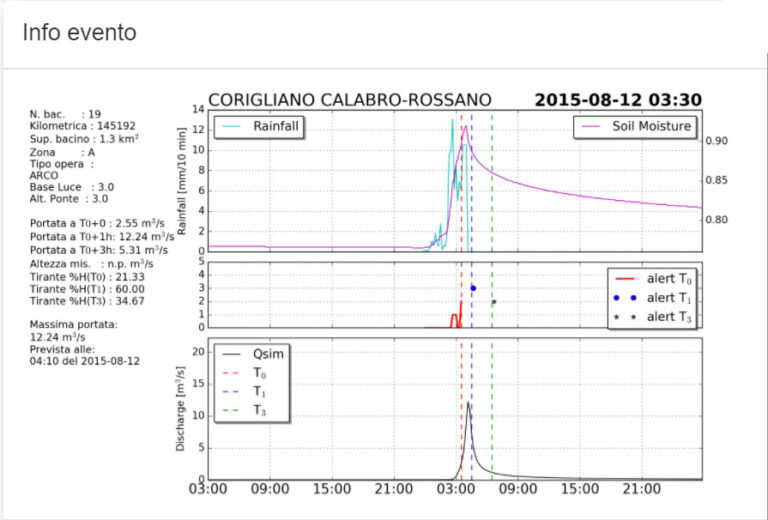

• Real-time inflows / outflows models

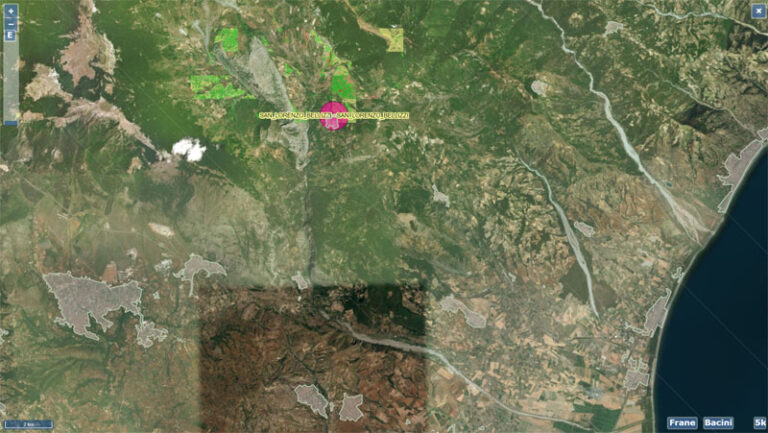

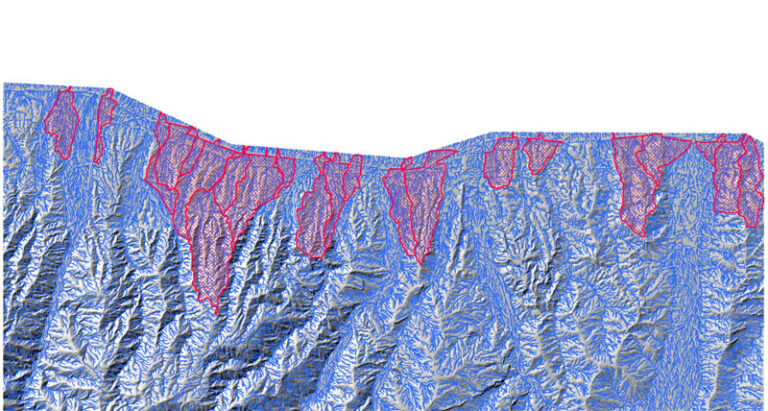

• Regional model for the probabilistic localization of soil slip. The model is based on a LIDAR 2×2 morphometric platform, soil moisture model in real time, maximum areal precipitation for intervals ranging from 30 ‘to 48 hours, lithology, land use.
